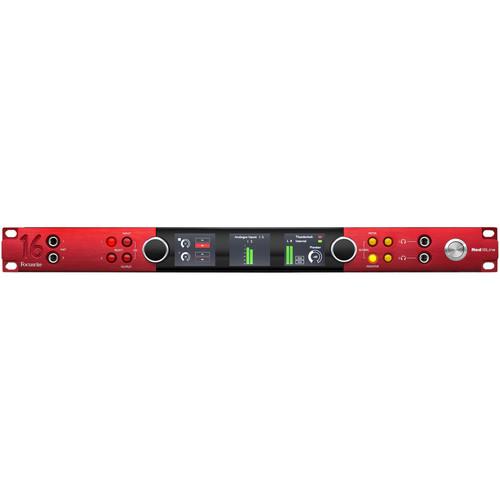

User Manual for Focusrite Red 16Line 64 x 64 Thunderbolt 3 Audio Interface for Pro Tools | HD Click to enlarge the picture
Contents of the user manual for the Focusrite Red 16Line 64 x 64
- Product category: Audio Interfaces & Systems Focusrite
- Brand: Focusrite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Focusrite Audio Interfaces & Systems
|
User manual for the Focusrite Red 16Line 64 x 64 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Focusrite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Focusrite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Focusrite product will considerably shorten its lifespan!
|
Product description The Red 16Line 64 x 64 Thunderbolt 3 Audio Interface for Pro Tools | HD from Focusrite Pro features low latency AD/DA conversion, Red Evolution mic preamps, up to 121 dB dynamic range, low round-trip latency, and expansion over Ethernet for networked audio. It provides both DigiLink connectors and Thunderbolt connections, allowing easy switching from Pro Tools | HD to a second DAW, without the need to reconfigure option cards in the interface. Simply change the host mode either in the remote control software, or on the device front panel and change DAWs in seconds.
The Red 16Line audio interface has audio converters with over a 118 dB dynamic range A/D and 121 dB dynamic range D/A (A-weighted). You can build your mix on the DAW and use it whether you are overdubbing (monitoring the input you are recording with the Focusrite Control software mixer) or playing back, with all your plug-ins in place.
The audio interface features 16 line inputs on D-sub, coupled with 16 line outputs and two main monitor outputs. The two digitally-controlled Red Evolution mic preamps provide up to 63 dB of clean gain along with stereo linking, individual phantom power, high-pass filter, phase reverse, and Air mode. With a dual-port Dante card, it allows you to expand your studio over Ethernet for more channels at higher sample rates and lower latency anywhere in your network. - Connect to Pro Tools | HD, Thunderbolt enabled computers, and Dante simultaneously without option cards
- High-performance audio conversion with over 118 dB dynamic range A/D and 121 dB dynamic range D/A (A-weighted)
- Low round-trip latency to track through plug-ins and record virtual instruments in real time
- 16 line inputs on D-sub, coupled with 16 line outputs and two main monitor outputs
- Two digitally-controlled Red Evolution mic preamps with up to 63 dB of clean gain, stereo linking, individual phantom power, high-pass filter, and phase reverse
- Air mode on the preamps, giving recordings the clarity of a transformer-based ISA
- Two Thunderbolt 3 ports as standard to connect additional Thunderbolt products
- Dual-port Dante card for more channels at higher sample rates
- Three LCD displays for accurate level metering
- Focusrite Control software mixer for setting up monitoring and routing configurations, with remote control of preamps
- Connect multiple digital sources using word clock I/O and loop-sync I/O
- Two instrument inputs on the front panel
- AAX/AU/VST-compatible Red 2 and Red 3 EQ, and compression plug-ins
UPC: 815301006329 In the Box Focusrite Red 16Line 64 x 64 Thunderbolt 3 Audio Interface for Pro Tools | HD Power Supply Thunderbolt 3 Cable Control Software RedNet PCIe Drivers (Included with RedNet Control Download) Audinate Dante Controller (Installed with RedNet Control) Red 2 and 3 Plug-in Suite Softube Time and Tone Bundle Limited 2-Year Warranty User Manual PDF 5.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Focusrite Red 16Line 64 x 64 Thunderbolt 3 Audio Interface for Pro Tools | HD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFocusrite Red16Line Specs | Dimensions | 1.7 x 19 x 13.3" (4.3 x 48.3 x 33.8 cm) | | Weight | 12.6 lb (5.7 kg) | | | | Package Weight | 15.75 lb | | Box Dimensions (LxWxH) | 23.8 x 18.6 x 4.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
